EMOCIA PH-W4720 Operation Panel
■ Output display
■ Timer display
■ Treatment time setting switch
■ Stop switch
■ Output volume
Starting the treatment
1. Set the treatment time by treatment time seting switch.
2. Turn up the output volume to start the treatment.
Finishing the treatment
1. When the timer expires, the treatment is automatically finished.
*Please press the stop button, if you want to finish during the treatment.
1. Over output protection function
When the output exceeds 35% of the rating, the output automatically shuts off.
2. Output zero start
To prevent excessive irradiation, once the position is not returned to the zero position, the irradiation output cannot be adjusted.
3. Magnetron overheat prevention circuit
Even if the cooling fan of the magnetron breaks down, overheating is prevented by the thermostat.
4. Jam radio waves leakage prevention circuit
Even if the microwave from the irradiator is applied to the operation panel, it does not affect the circuit board.
EMOCIA 4710(1-CH type)

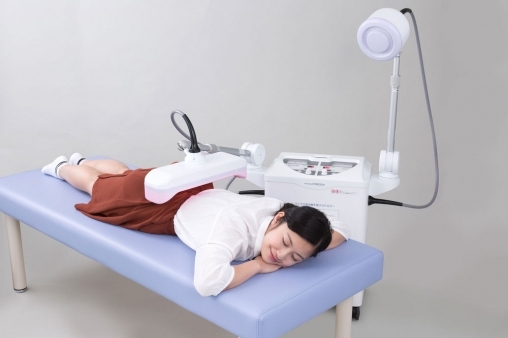

EMOCIA 4720(2-CH type)
| EMOCIA 4710(1-CH) | EMOCIA 4720(2-CH) | |
| Commodity code | PH-W4710AEK/CEK | PH-W4720BEK |
| Main power | AC100V or 220V 50/60Hz | AC100V or 220V 50/60Hz |
| Power consumption | 500VA | 1,000VA |
| Dimensions | 450(W) x 690(H) x 300(D)mm | 450(W) x 690(H) x 300(D)mm |
| Weight | 30kg | 43kg |
| Output | 0-125W | 0-125W |
| Frequency | 2,450±50MHz | 2,450±50MHz |
| Therapy modes | Continuous | Continuous |
| Treatment time | 1-30 min | 1-30 min |
| Safety function | Zero start, Over output protection function, Jam radio waves leakage prevention circuit, Magnetron overheat prevention circuit | Zero start, Over output protection function, Jam radio waves leakage prevention circuit, Magnetron overheat prevention circuit |
